DX4 Encoder Resolution / Scaling

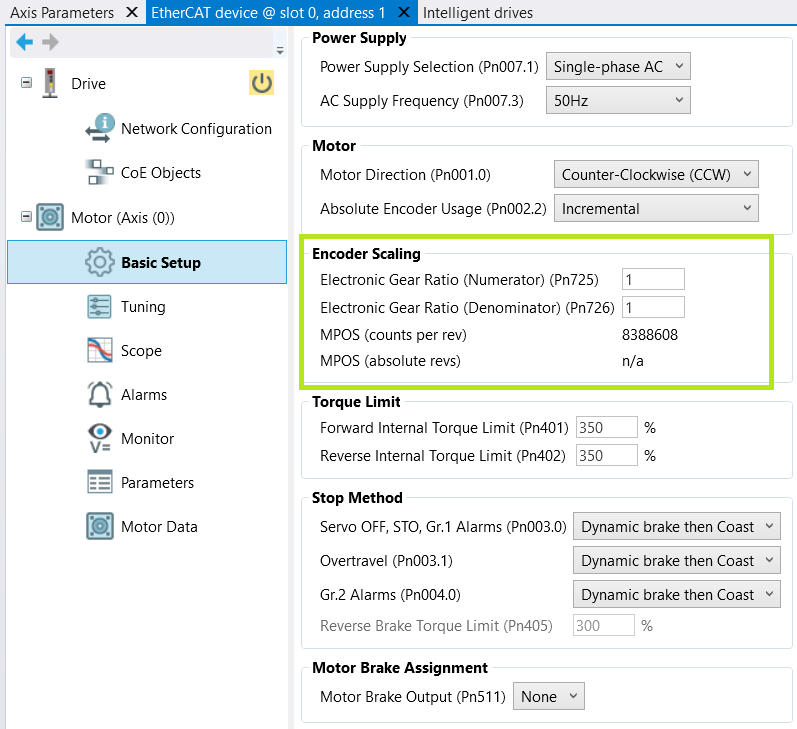

This option is available through the Parameters Pn725 and Pn726 and the values used will
depend on the type of encoder you have on the motor (20 or 23bit).
Section 9-11 has some descriptions in the manual.
