P367 Thermocouple Integration with Motion Perfect v5.1 and later
With the launch of Motion Perfect v5.1 and firmware updates to the P367 Thermocouple device it becomes
easier to set up and control your P367 slices.

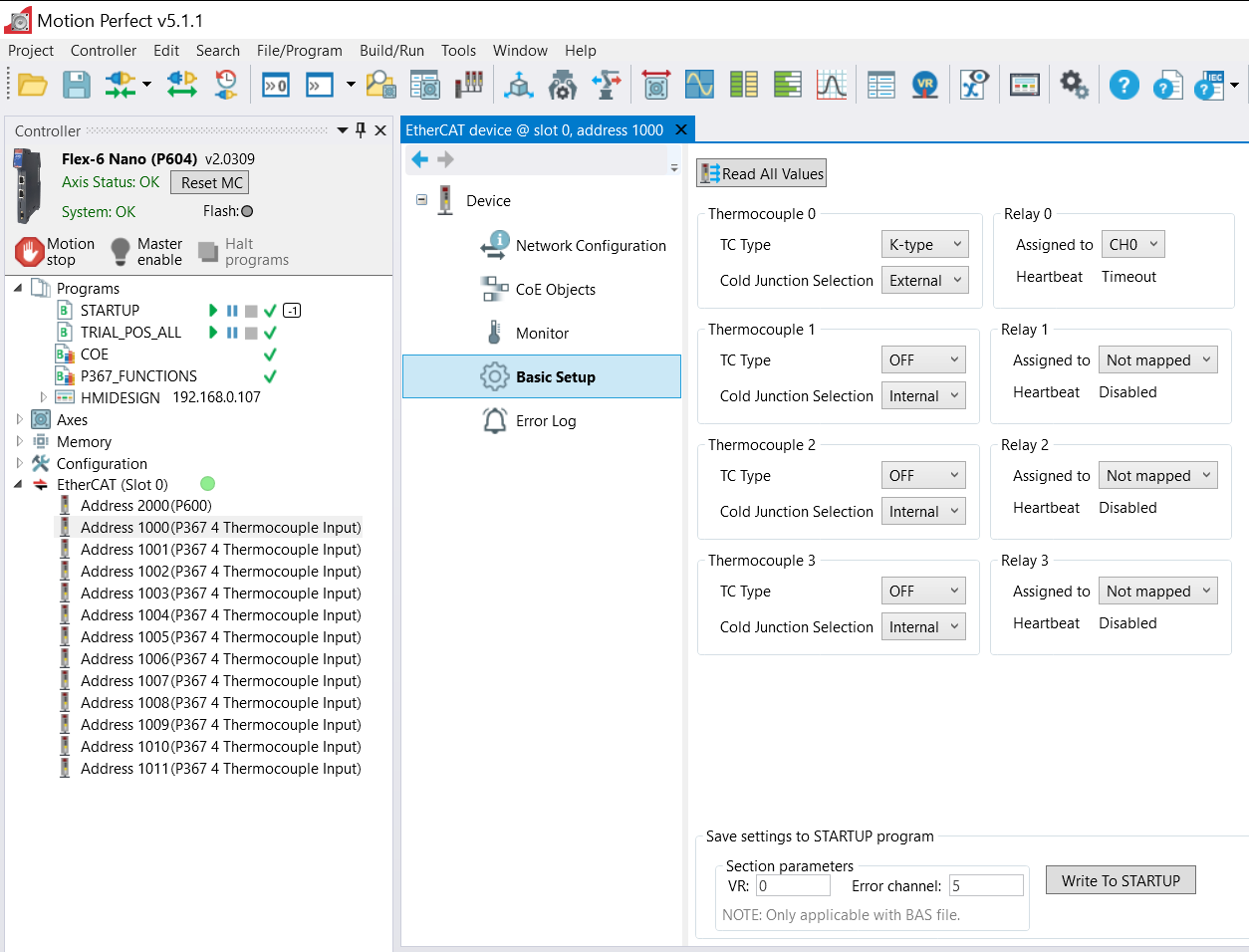

Below is a screen shot showing the Basic Setup screen which easily allows programmers how to configure the P367 slice
that is on the EtherCat network. The P367 will automatically be detected as a recognised device and therefore users
will not require any EC_EXTEND files to be able to control the device.
Attached is a sample program bundle containing a project design with multiple P367's. It has a simple control program and associated
control screen for each Thermocouple slice. Also included is the relevant Application note for the P367 and the present P367 firmware
build of V2.200.
