Drive I/O control for Panasonic RTEX

To use the Panasonic RTEX IO, have to add DRIVEIO_BASE in the MC_CONFIG. Example:

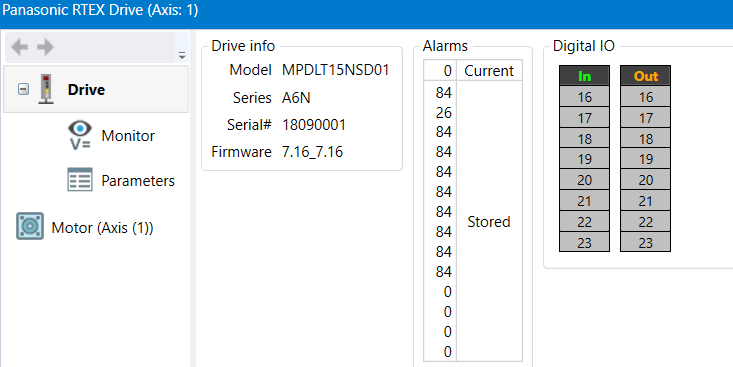

You then able to view this in the Motion Perfect:

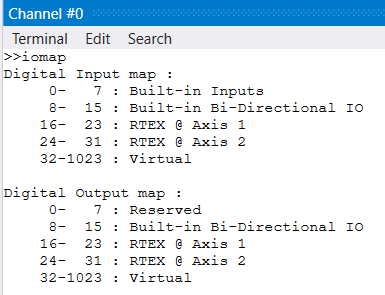

Or type IOMAP in the terminal to see this:
