Schneider drive LXM32M

Schneider drive LXM32M

The LXM32 is in the controller database. Here are some notes refering to this drive:

1.1. LXM32M

Firmware profile V2.0271 and later have the settings for this drive. Firmware to set up the usual Trio small profile (V2.0271) Startup is OK.
Drives with Schneider firmware version P091200V011604 will not start.

Test motor 131072 counts per turn.

CSV mode tested. DAC (target speed) scaling is RPM. DAC=1000 gives 1000 RPM.

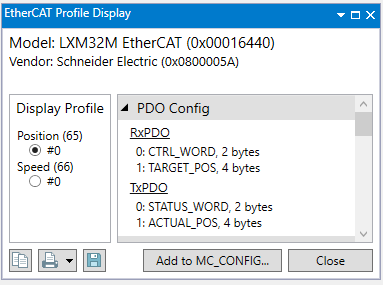

The built-in profile is for CSP position and CSV speed modes. An EC_EXTEND can be created that contains digital IO and this has also been tested by Trio in 2017.  An example is attached.
