P350 - RS232 Cable Connections
This extract is from the full manual.
Related Articles
RS232 RS485 connector

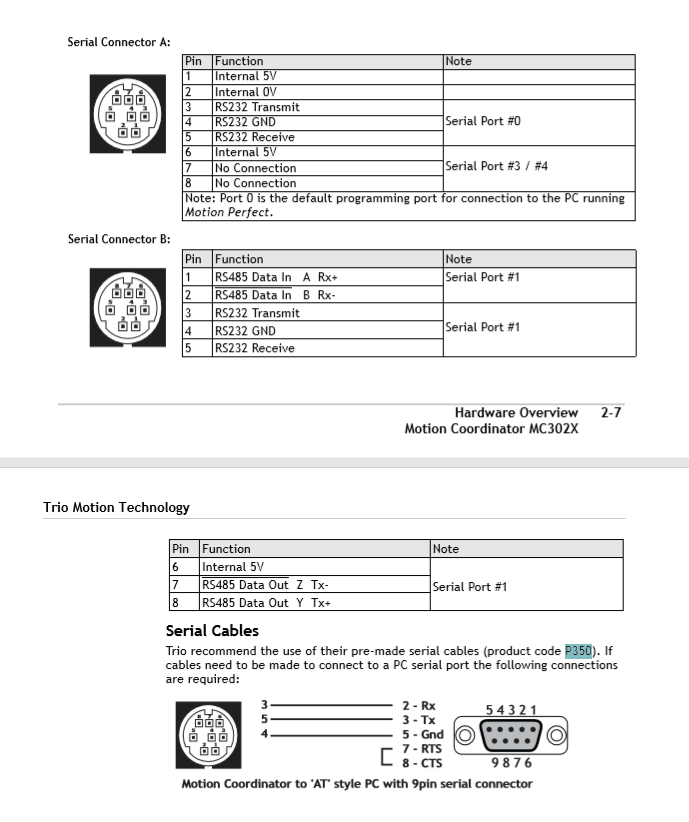

Trio have one product, the RS232 cable P350. The connection is as follows. For RS485; Trio don't sell a cable but you can buy one from other vendors. For example this one from RS components. RS Stock No. 463-518Replace EURO205X with EURO209
The Euro 209 and Euro 404/408 share the same pinout arrangement which is somewhat different to the Euro 205(x). So changing from 205 to either the 404 or 408 will have the same hardware challenges. Software wise the 205/404 difference is similar to ...Serial ports on PC-MCAT for Motion Coordinator Channels
The PC-MCAT API brings channels 1 and 2 out into the API, but does not map them to anything. The attached little program is an example which will do that for you. It is a 7z folder encrypted with password abc123. A USB to RS232 converter will be ...Wiring for RS485
The Motion Coordinator has a 4-wire RS422 port. This can be set as a 2-wire RS485 port by wiring the Tx and Rx together. MC664 is shown. All Motion Coordinators have the same port pin configuration. For some protocols it will be necessary to set up ...MC403 encoder power overload
Issue: The 5 volt supply is taken from an axis port of the MC403 and cable length is >15 meters. After 15-20 days the power supply overloaded alarms comes. After removing and reconnecting the cable, the alarm went away. But after 2-3 days alarm came ...
