Axis Status Error

Axis Status Error

Just picked up my Flex-6 Nano again to do some testing with movelink, for some reason my FLEX-3AX is throwing errors. pressing the error reset button is not changing anything.

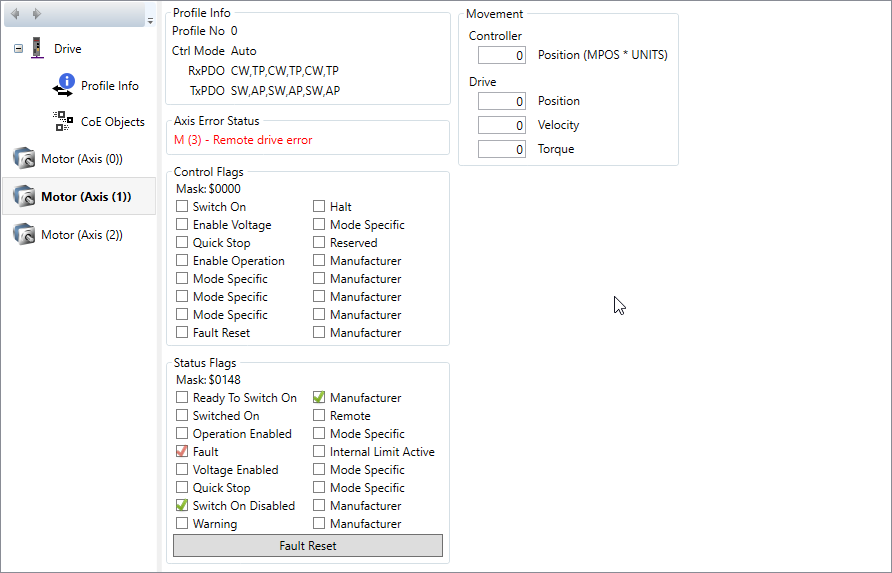

All 3 axis are the same:


Answer: The Fault bit in the CoE status will be set if there is no 24V supply connected to the P375. As this is a hardware fault, it cannot be reset by software.
