EtherCAT start - diagnostic information
When reporting an EtherCAT startup error, please send the following information to Trio technical support.
1) The text shown on the terminal after ETHERCAT(0, 0)
For example:
>>ETHERCAT(0,0)
Warning - EtherCAT cable or network not detected (slot 0).
or:
>>ETHERCAT(0,0)
EtherCAT State: Init (0)
EtherCAT State: Pre-Operational (0)
EtherCAT State: Safe-Operational (0)
EtherCAT State: Operational (0)
EtherCAT Configuration (0):
TMCM-6211: 0 : 0 : 1 (0:0:0,1:0:0,2:0:0,3:0:0,4:0:0,5:0:0)
>>

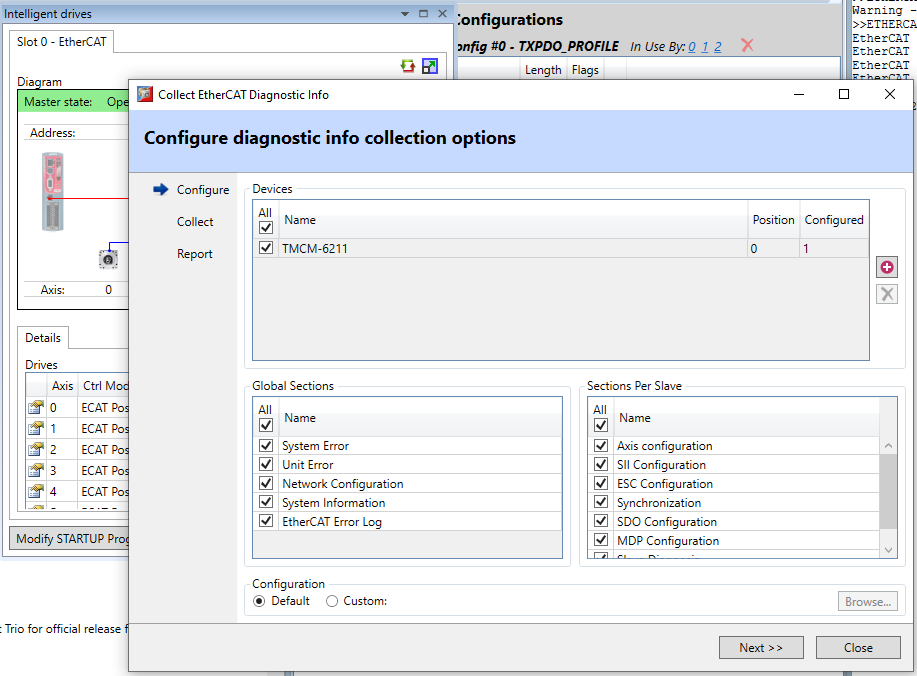

2) The Diagnostic report from Intelligent drives. You get that by double clicking the controller image in Intelligent Drives.
Send the result to support@trio.zohodesk.eu
Related Articles
Fast EtherCAT start up.
The fast startup is done with ETHERCAT(0,0,5). It means the master does not wait for the drives to be in sync before going operational. The drives will still take the same amount of time to get in sync so you should delay doing any actual moves until ...Ethercat PDO Comms Fail on Power-up with Yaskawa Sigma 7
MC6N, 2 machines behave the same. They came up with Unit error, System error and axis status errors. Yaskawa Sigma 7 shjows A12 error. Set AUTO_ETHERCAT = 0 and start from the MAIN program after a time delay with ETHERCAT(0, 0) e.g. WA(20000) ' 20 ...General EtherCAT Error
Motion Coordinator reports a General EtherCAT Error with a number. What does it mean? Error - General Ethercat Error(8) = invalid data, exceeded maximum telegram length (by attempting to add too much data into the telegram.) Error - General ...Flex6-NANO Startup Loop always goes offline
I made a mistake and my Flex-6 Nano always runs a configuration on startup that results in the PC not being able to connect. What can be done to solve it? ================================================================================== You need to ...AN-315 EtherCAT setup for Panasonic A5B Drive
When delivered, the Panasonic A5B has 2 features set; the Positive Over Travel Input (POT) and the Negative Over Travel input (NOT). If these are connected to limit switches then the system will work in the usual way until the limit switch is ...
